Twisted Brick Shell Concept Library
红砖概念图书馆，浙江龙游

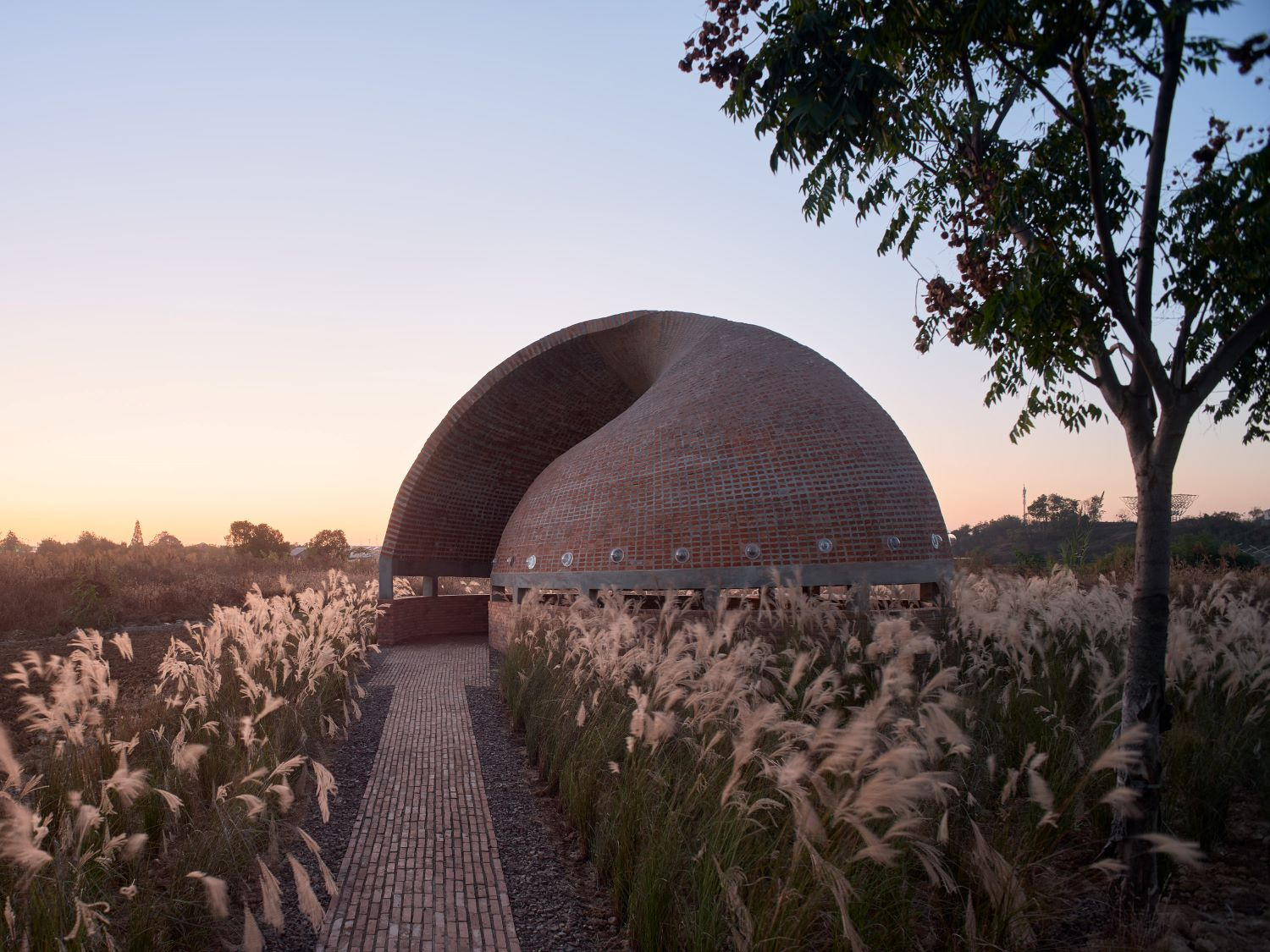

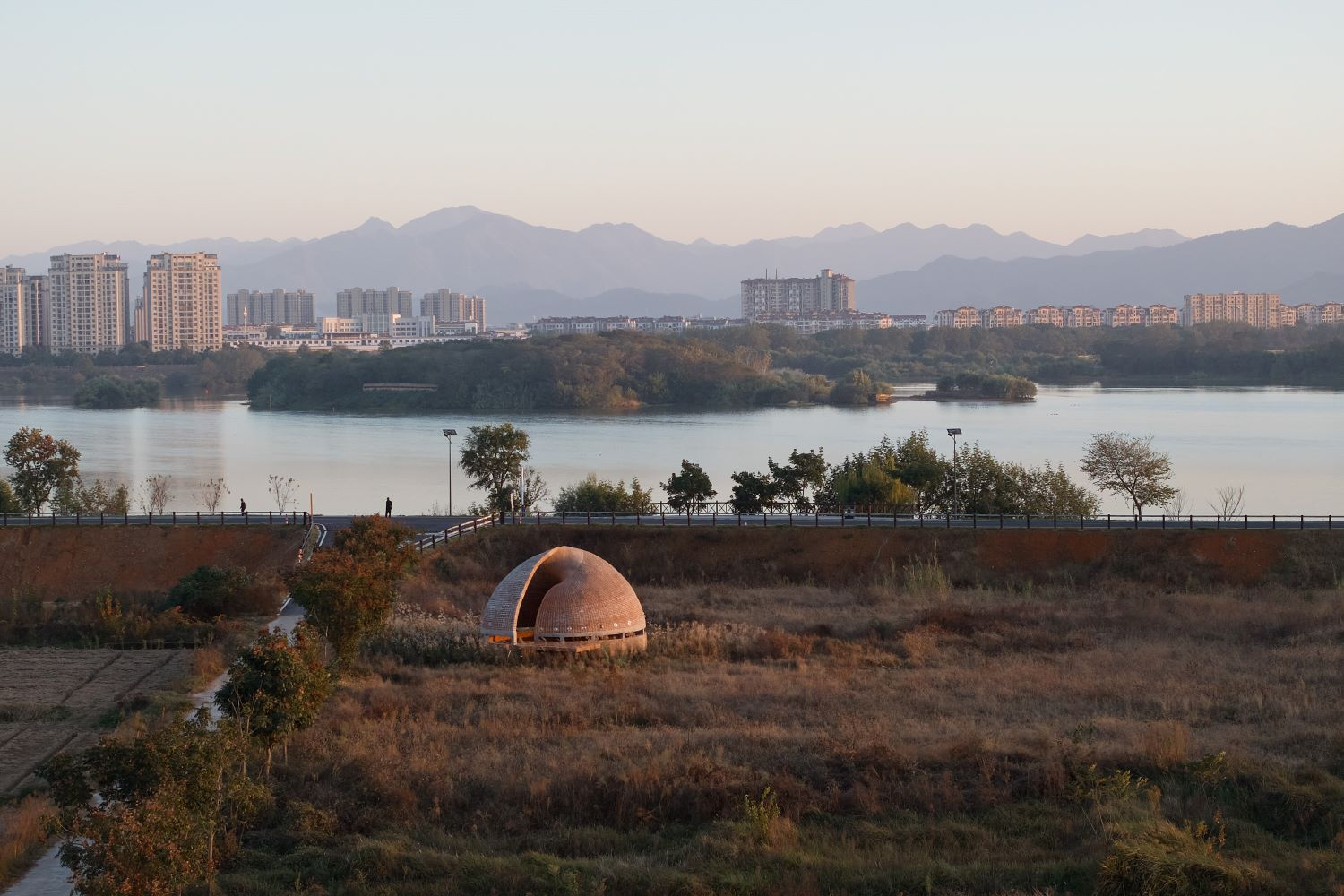

The Concept Library is a spiral shell embraced by high grass field, located in rural area of Zhejiang Province, China. It tries to explore the possibility of the fusion between contemporary formal expression and vernacular material culture.

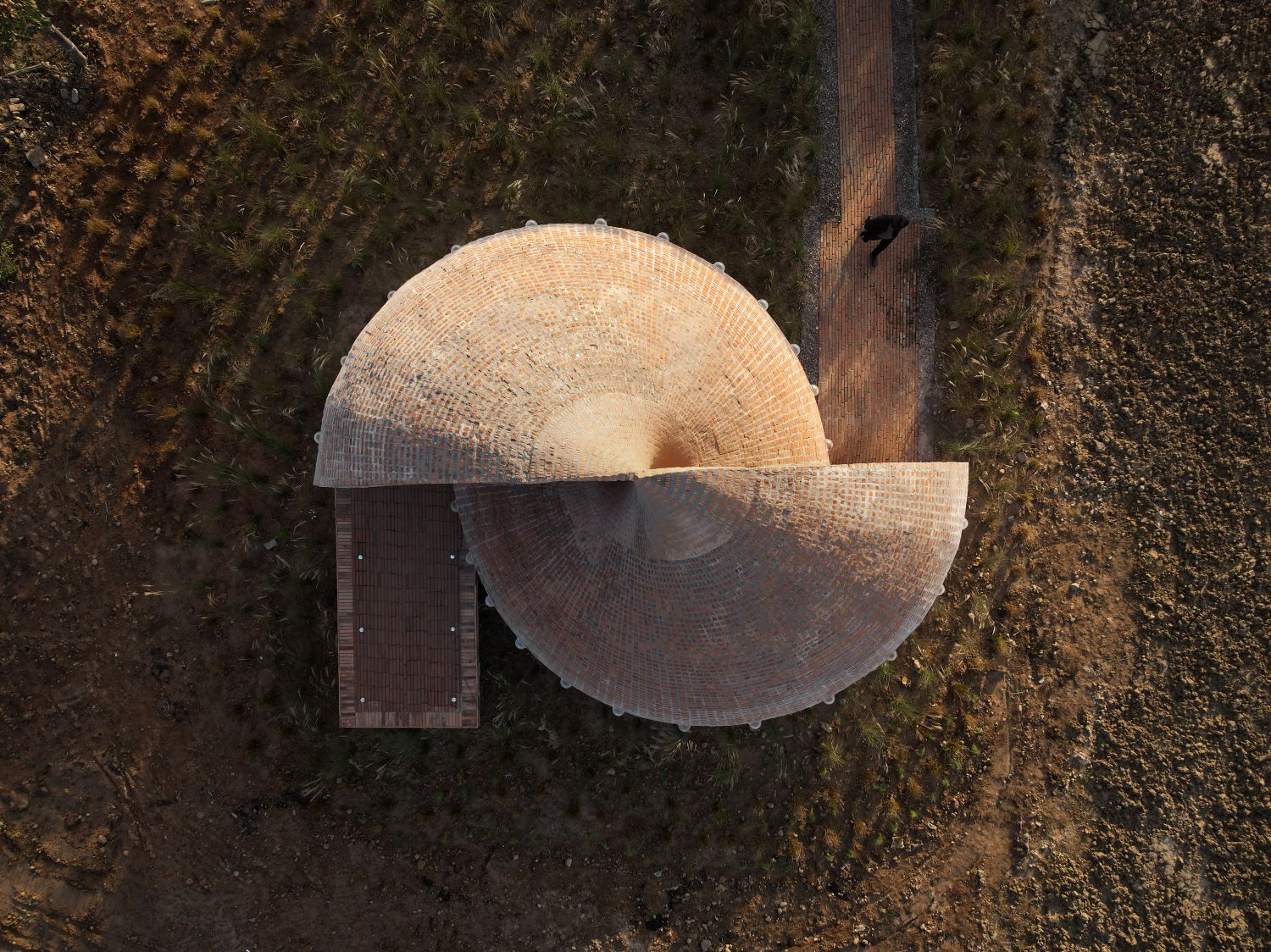

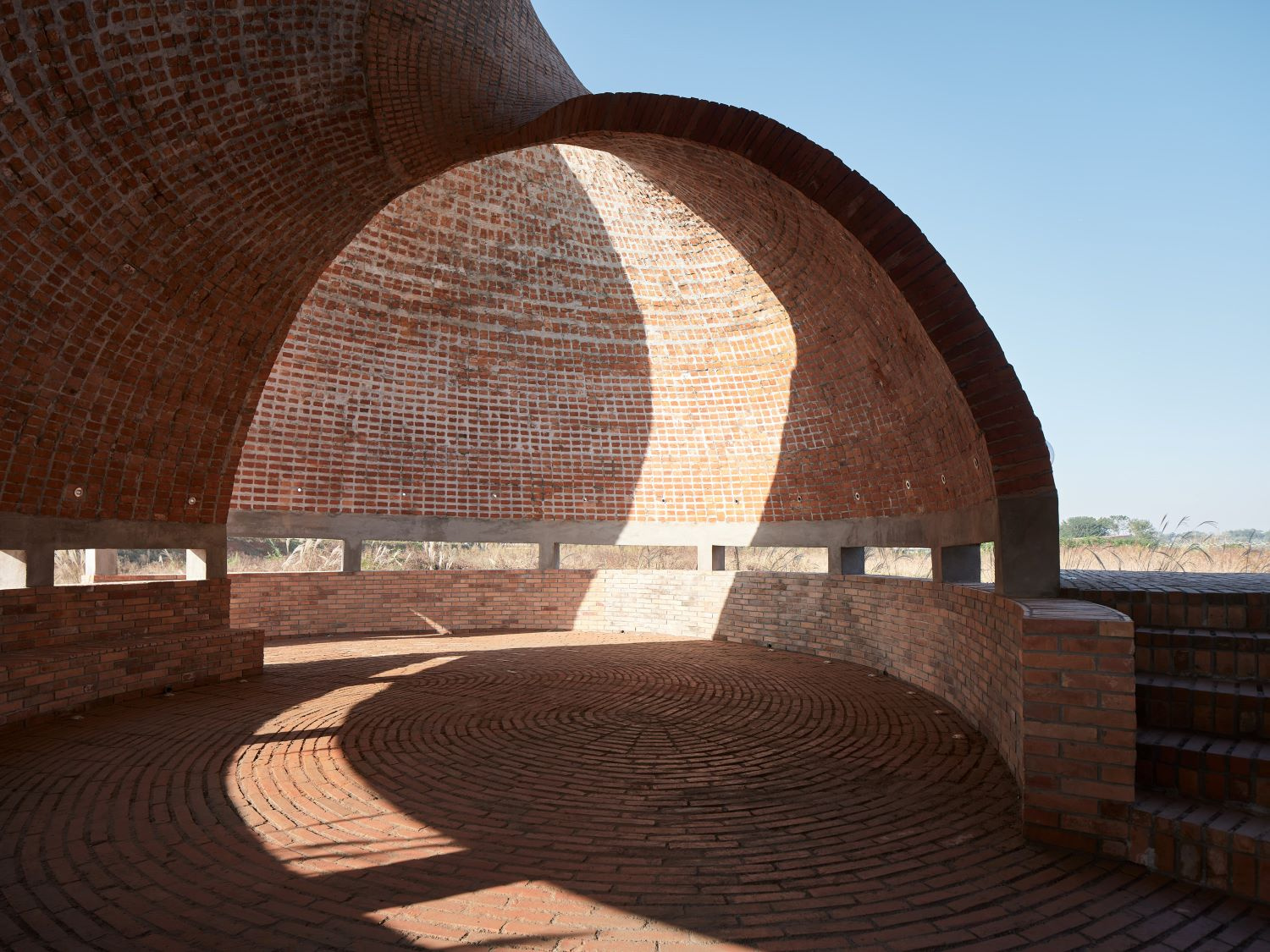

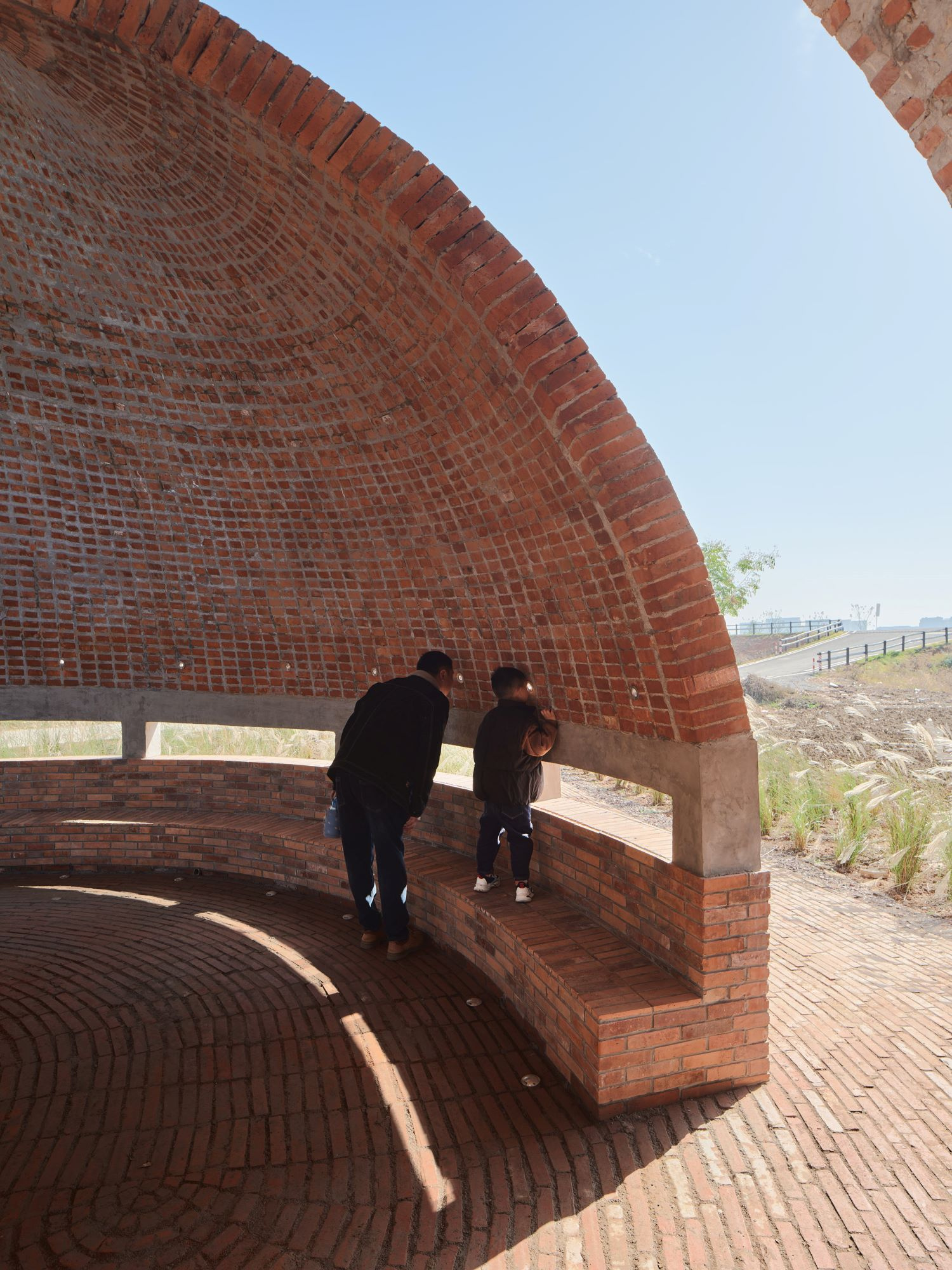

The Concept Library is approximately 10 meters in diameter and 5 meters high. The continuous surface is generated by two semicircles sweeping from one to the other, blurring interior and exterior. The shell is made of red bricks, not by masonry, but all casting in-situ. Sunlight sheds into dim interior through the opening at the top. Visitors can read text inside the acrylic balls through the small holes in the walls. The texts overlays with the landscape, creating a poetic moment to connect body, mind and nature.

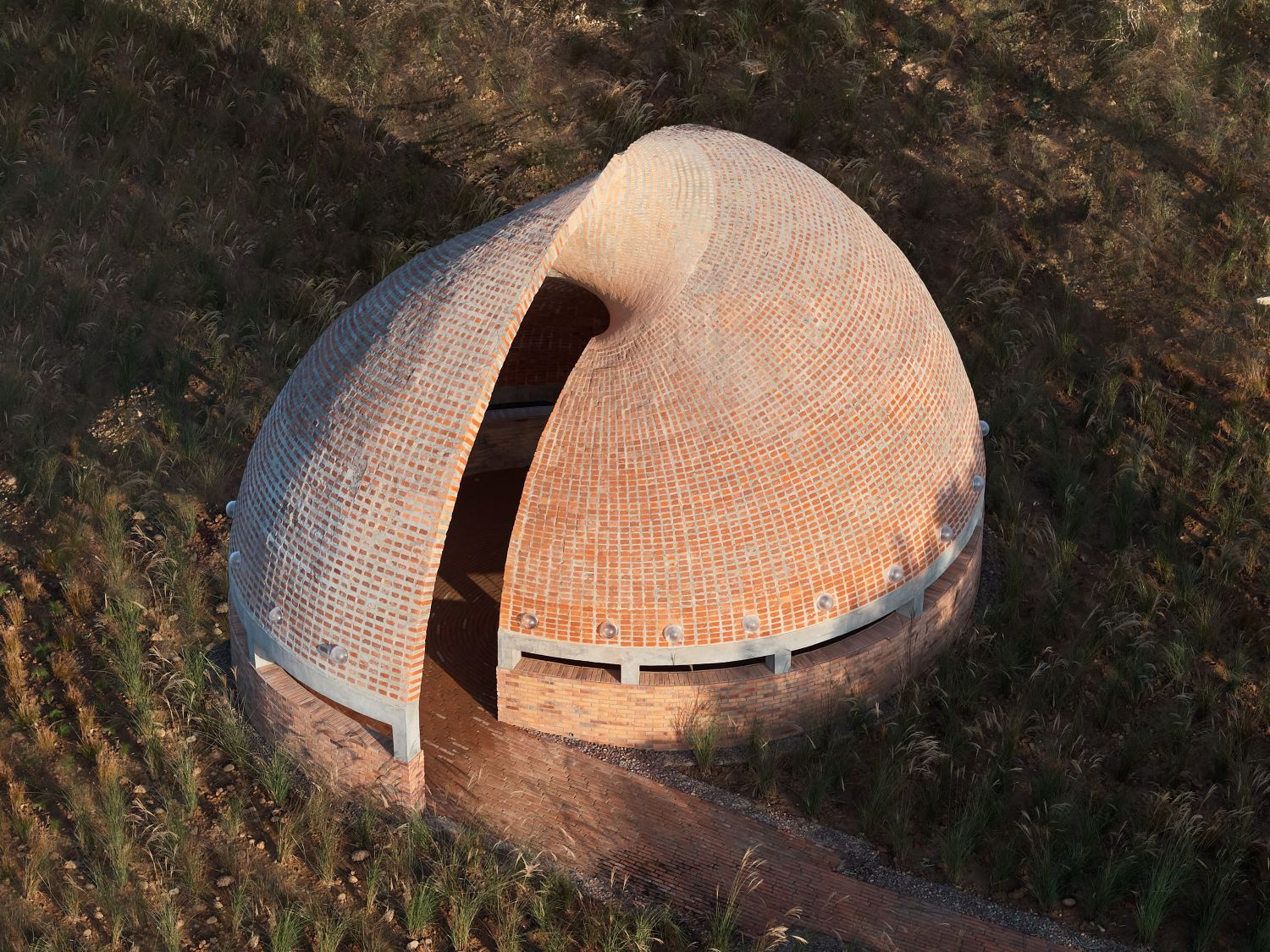

The distribution of bricks on the double-curved surface presents a great challenge to construction. The bricks are positioned by perforated steel plates that work as steel reinforce framework and then filled by high strength concrete. These three materials work together as a total structure. Bricks in 12 different widths are distributed along the UV grid to ensure the radial continuity of the structure. The shell thus forms a refreshing construction logic and visual expression, which derives from stacked and interlocking masonry. The pixelated matrix distribution of the brick, the everchanging thickness of 'mortar' (which is actually in-situ concrete) subverts the common tectonic of brick construction.
This is a bold attempt at rural construction, integrating digital industrialization with traditional materials. It is also trying to create a transcendent experience beyond mere idyllic expression of 'countryside'. The library is a contemporary shelter for body and mind, encouraging visitors to read and reflect a broader outside and inside.
Design: HCCH Studio
Design team: Hao Chen, Chenchen Hu, Yida Hou, Wenxi Li, Xi Cai
Structural consultant: AND office
Location: Longyou, Zhejiang Province, China
Period: Jun.2022- Nov.2023
Photographs: Qingyan Zhu
红砖概念图书馆，浙江龙游

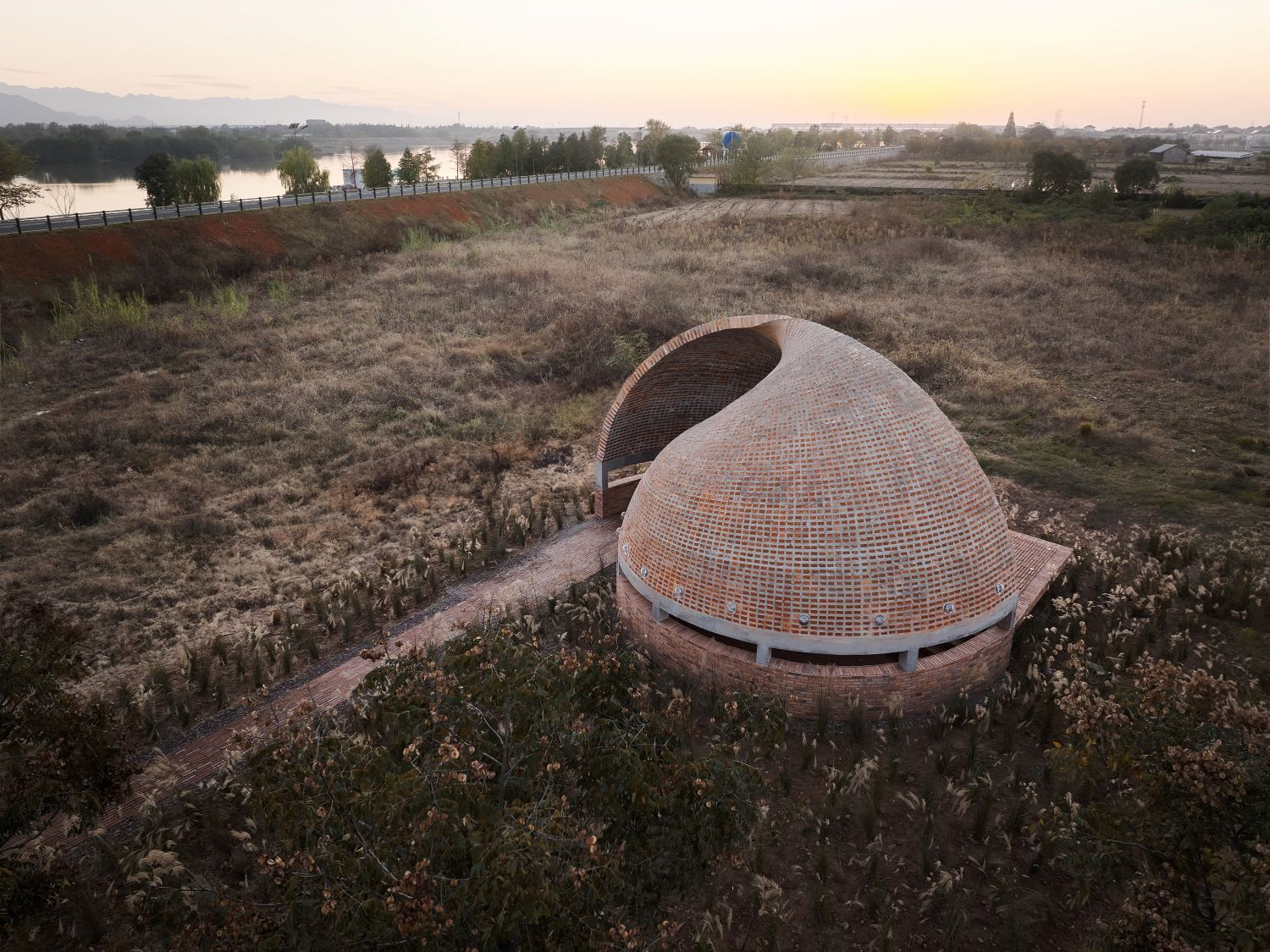

The Concept Library is a spiral shell embraced by high grass field, located in rural area of Zhejiang Province, China. It tries to explore the possibility of the fusion between contemporary formal expression and vernacular material culture.

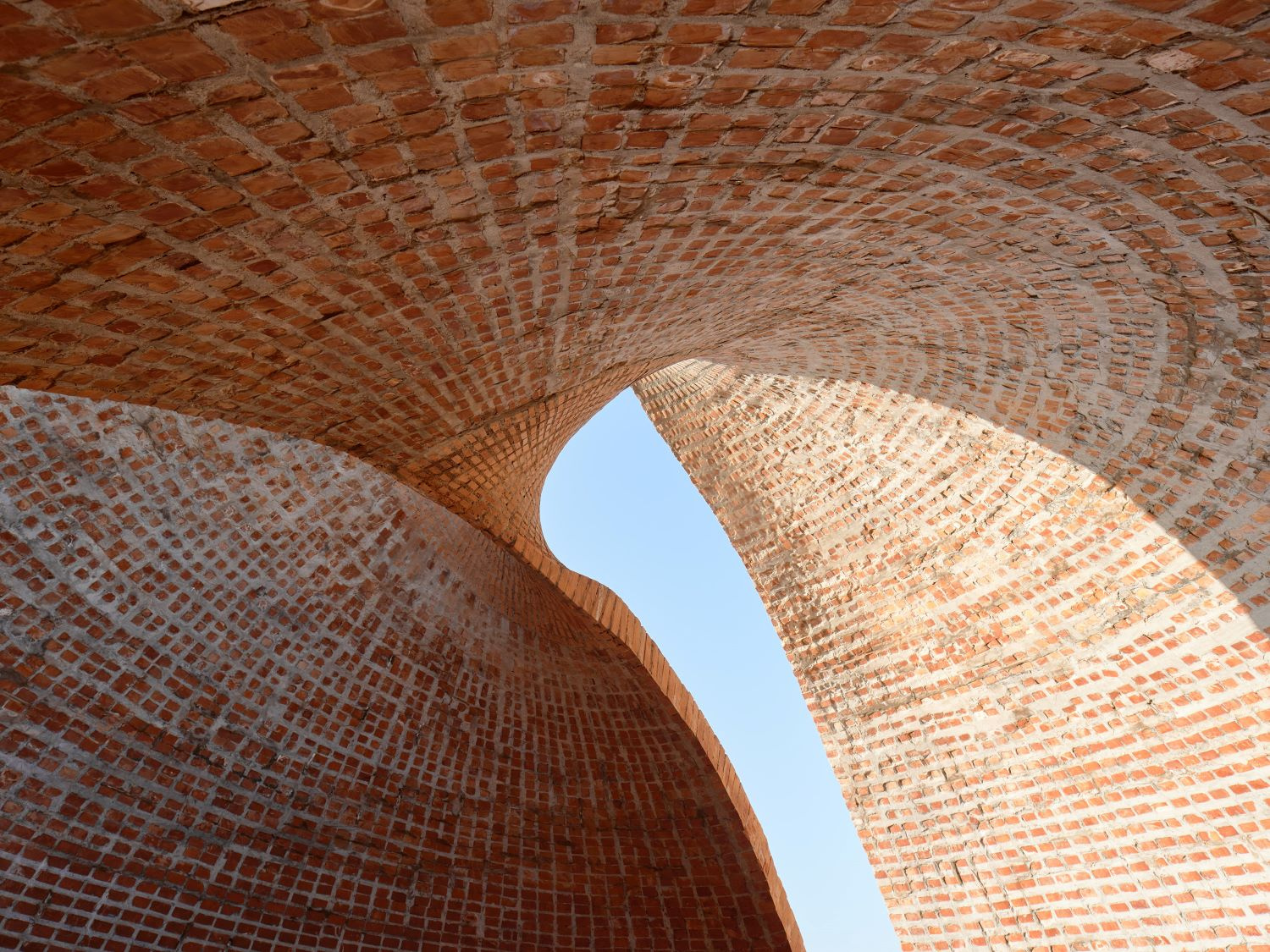

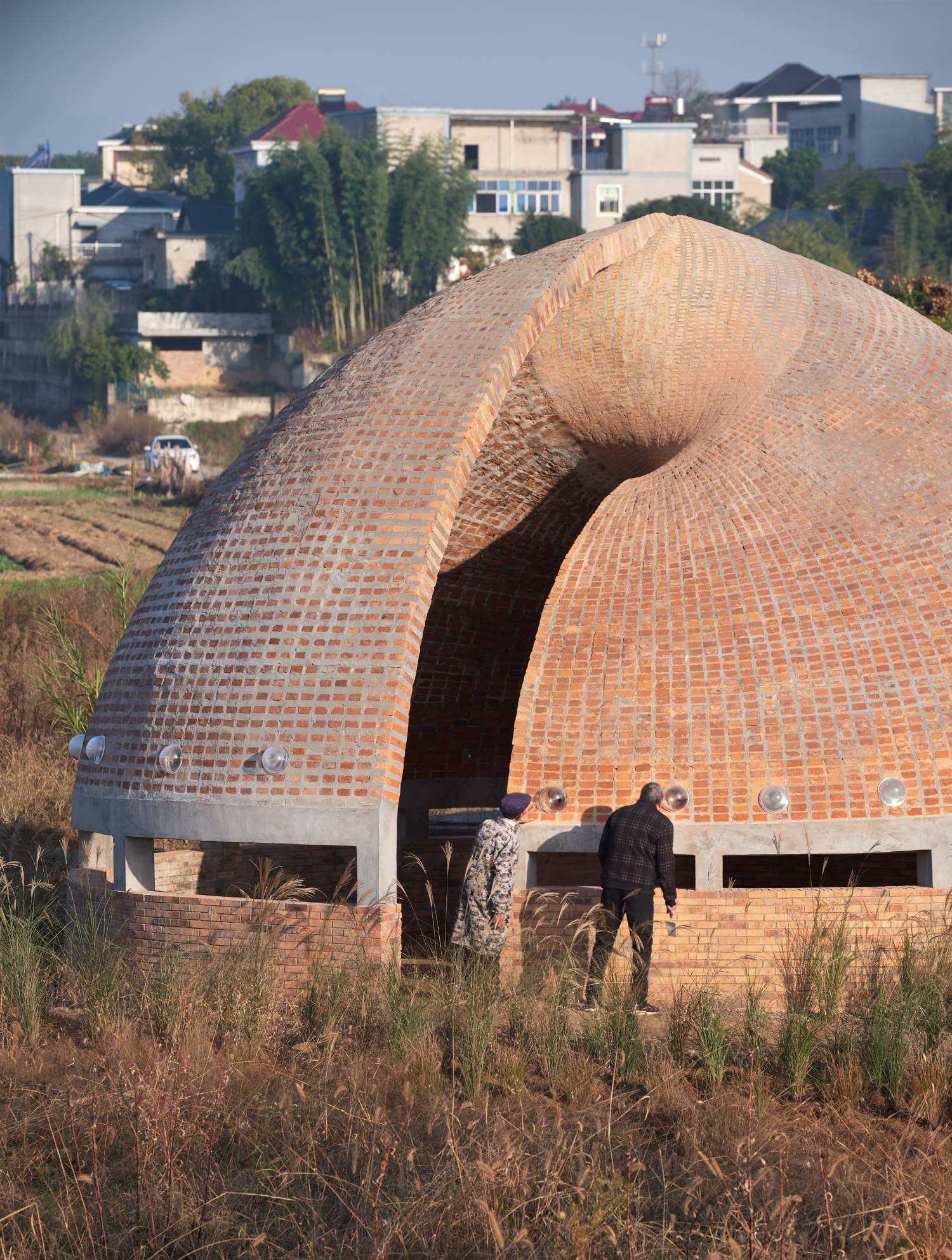

The Concept Library is approximately 10 meters in diameter and 5 meters high. The continuous surface is generated by two semicircles sweeping from one to the other, blurring interior and exterior. The shell is made of red bricks, not by masonry, but all casting in-situ. Sunlight sheds into dim interior through the opening at the top. Visitors can read text inside the acrylic balls through the small holes in the walls. The texts overlays with the landscape, creating a poetic moment to connect body, mind and nature.
The distribution of bricks on the double-curved surface presents a great challenge to construction. The bricks are positioned by perforated steel plates that work as steel reinforce framework and then filled by high strength concrete. These three materials work together as a total structure. Bricks in 12 different widths are distributed along the UV grid to ensure the radial continuity of the structure. The shell thus forms a refreshing construction logic and visual expression, which derives from stacked and interlocking masonry. The pixelated matrix distribution of the brick, the everchanging thickness of 'mortar' (which is actually in-situ concrete) subverts the common tectonic of brick construction.
This is a bold attempt at rural construction, integrating digital industrialization with traditional materials. It is also trying to create a transcendent experience beyond mere idyllic expression of 'countryside'. The library is a contemporary shelter for body and mind, encouraging visitors to read and reflect a broader outside and inside.
Design: HCCH Studio
Design team: Hao Chen, Chenchen Hu, Yida Hou, Wenxi Li, Xi Cai
Structural consultant: AND office
Location: Longyou, Zhejiang Province, China
Period: Jun.2022- Nov.2023
Photographs: Qingyan Zhu

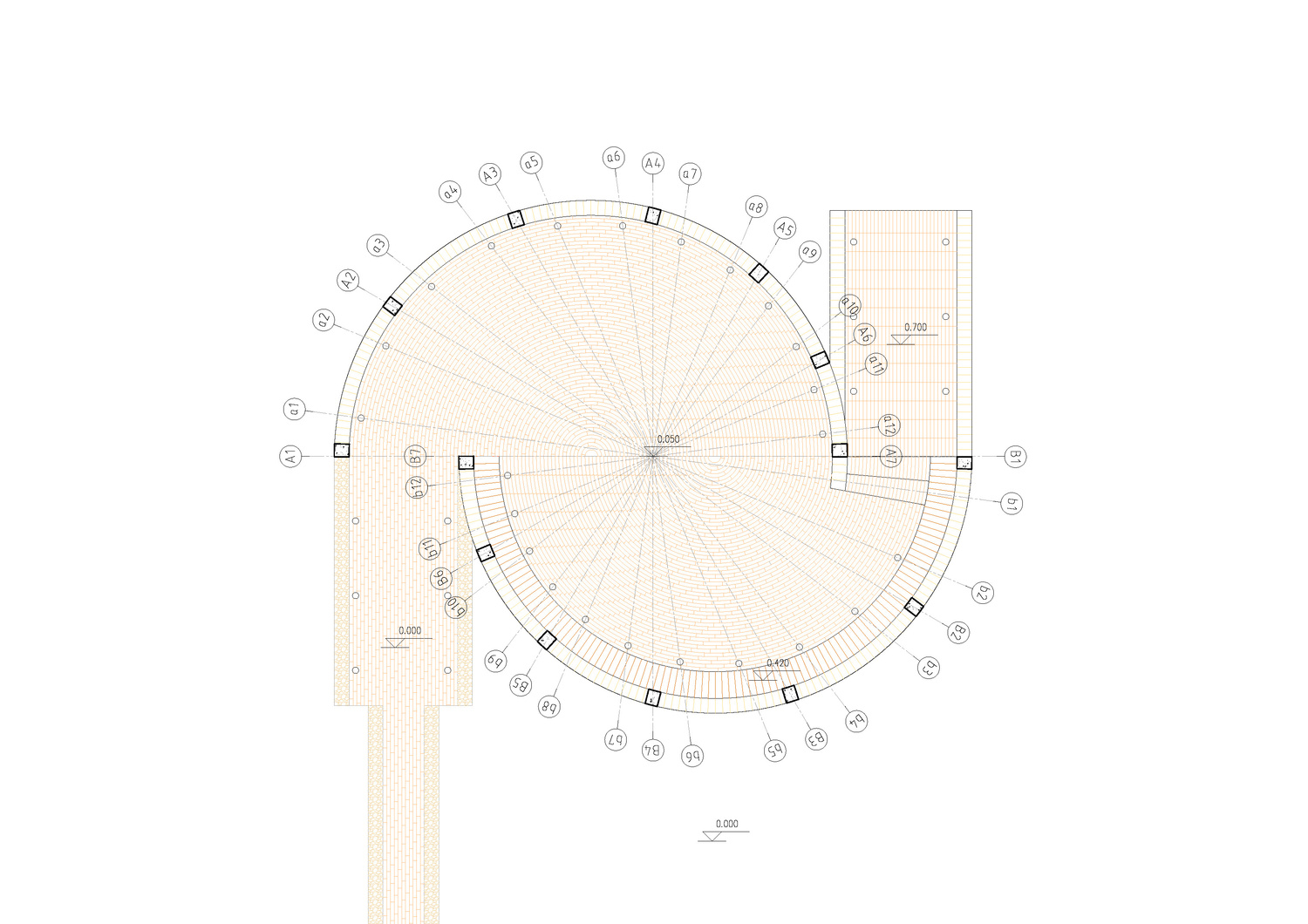

↑plan

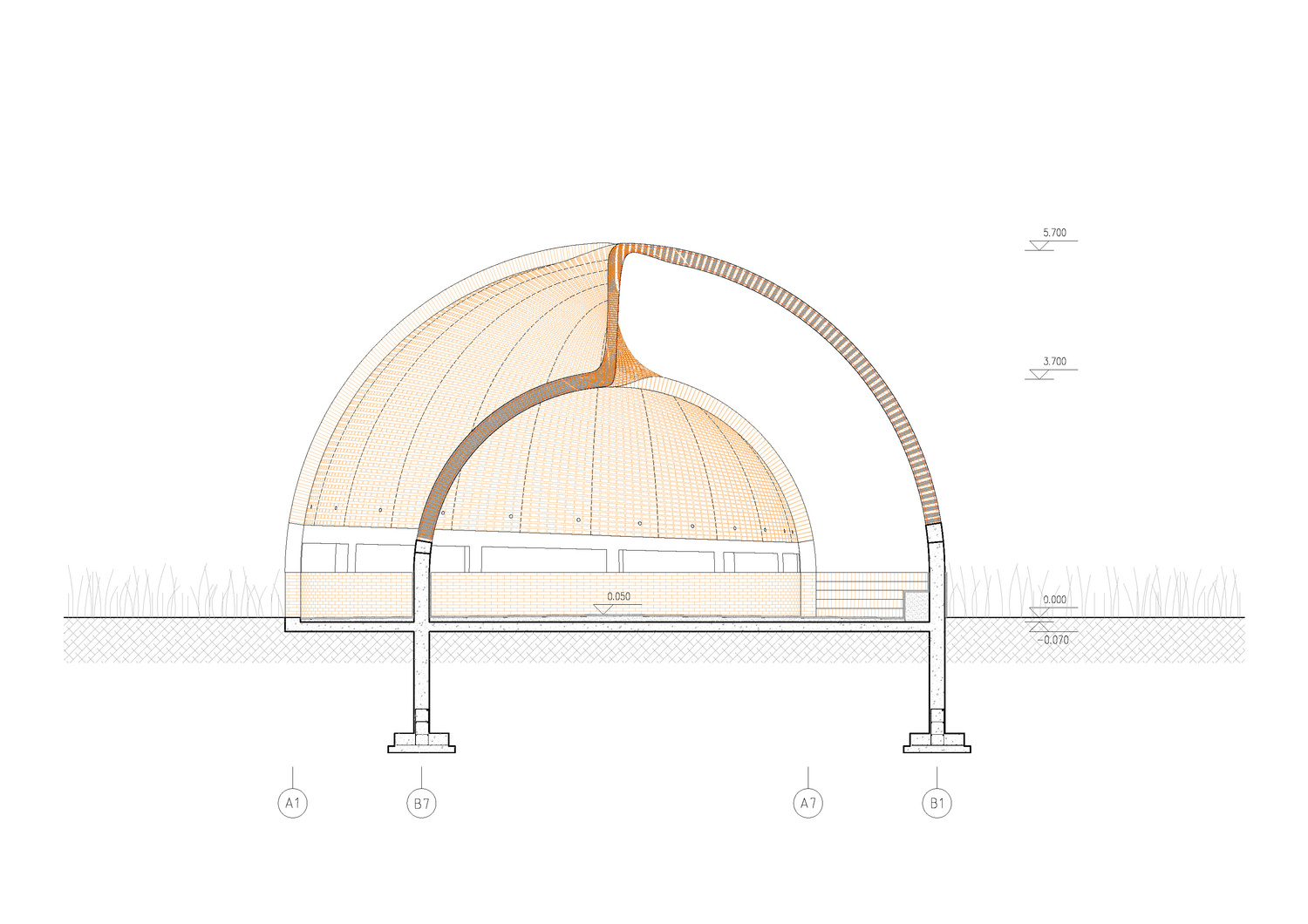

↑section

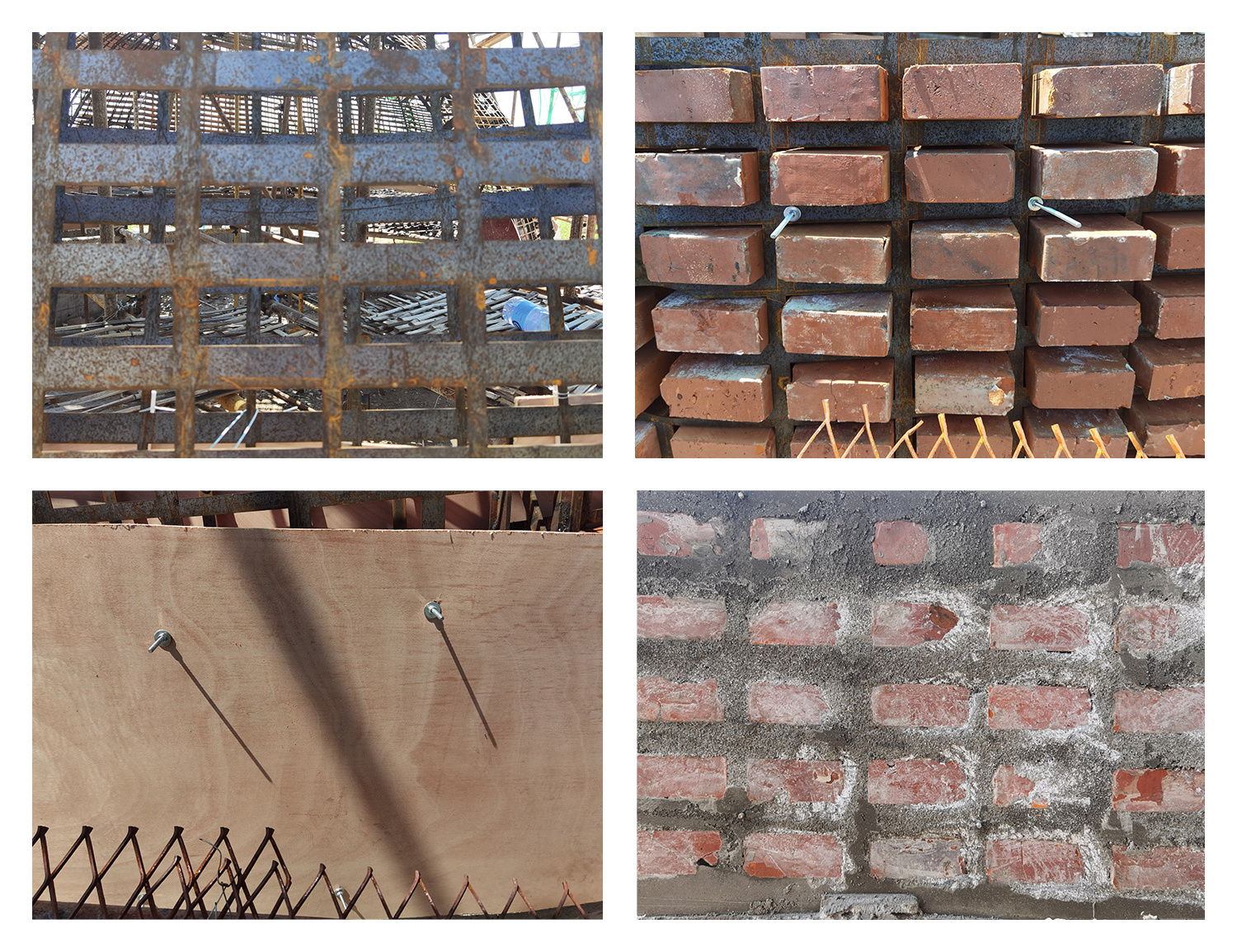

↑ perforated steel plates/ ↑ inserted bricks/
↑ in-situ concrete formwork/ ↑ formwork-removed suface

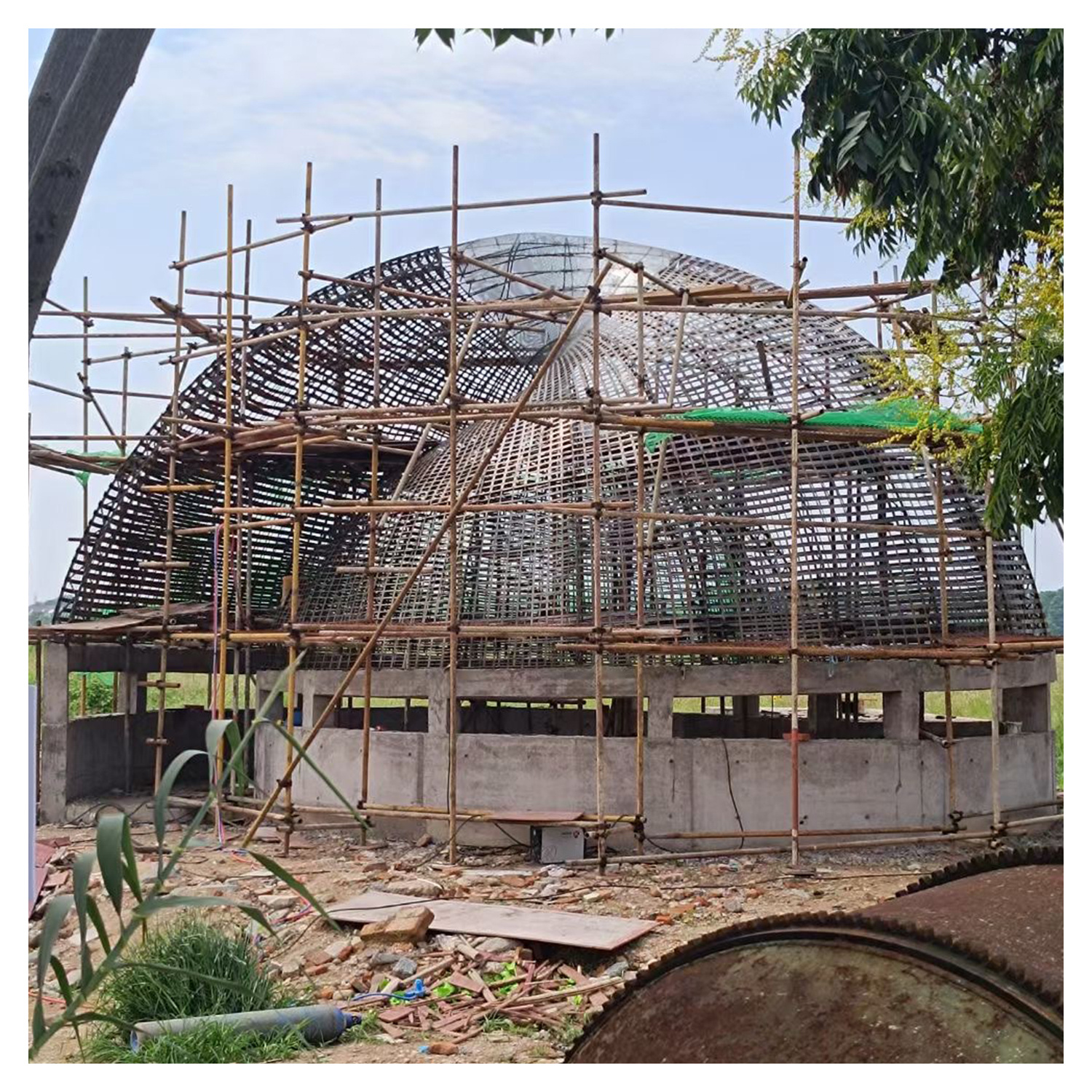

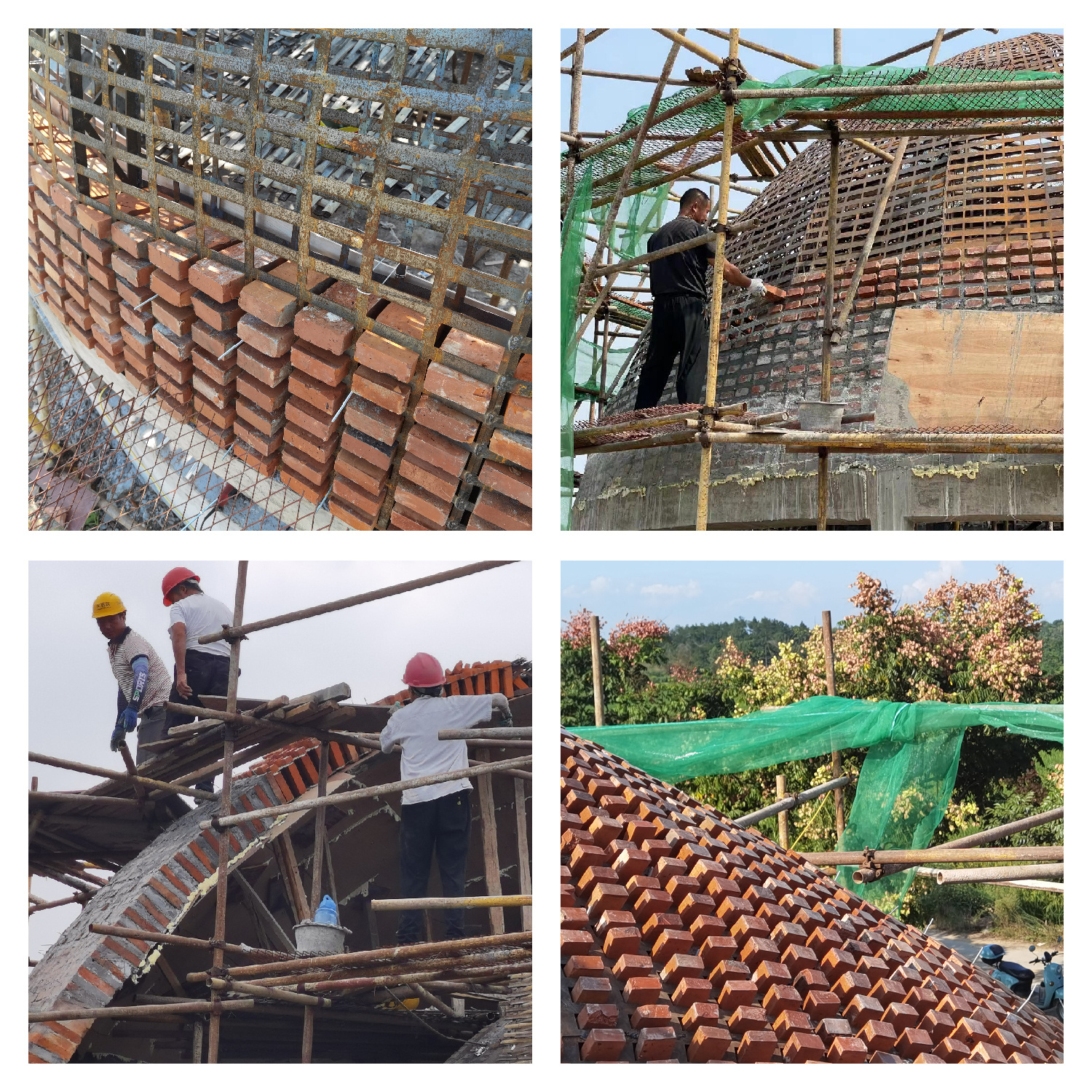

↑ welding perforated steel framework

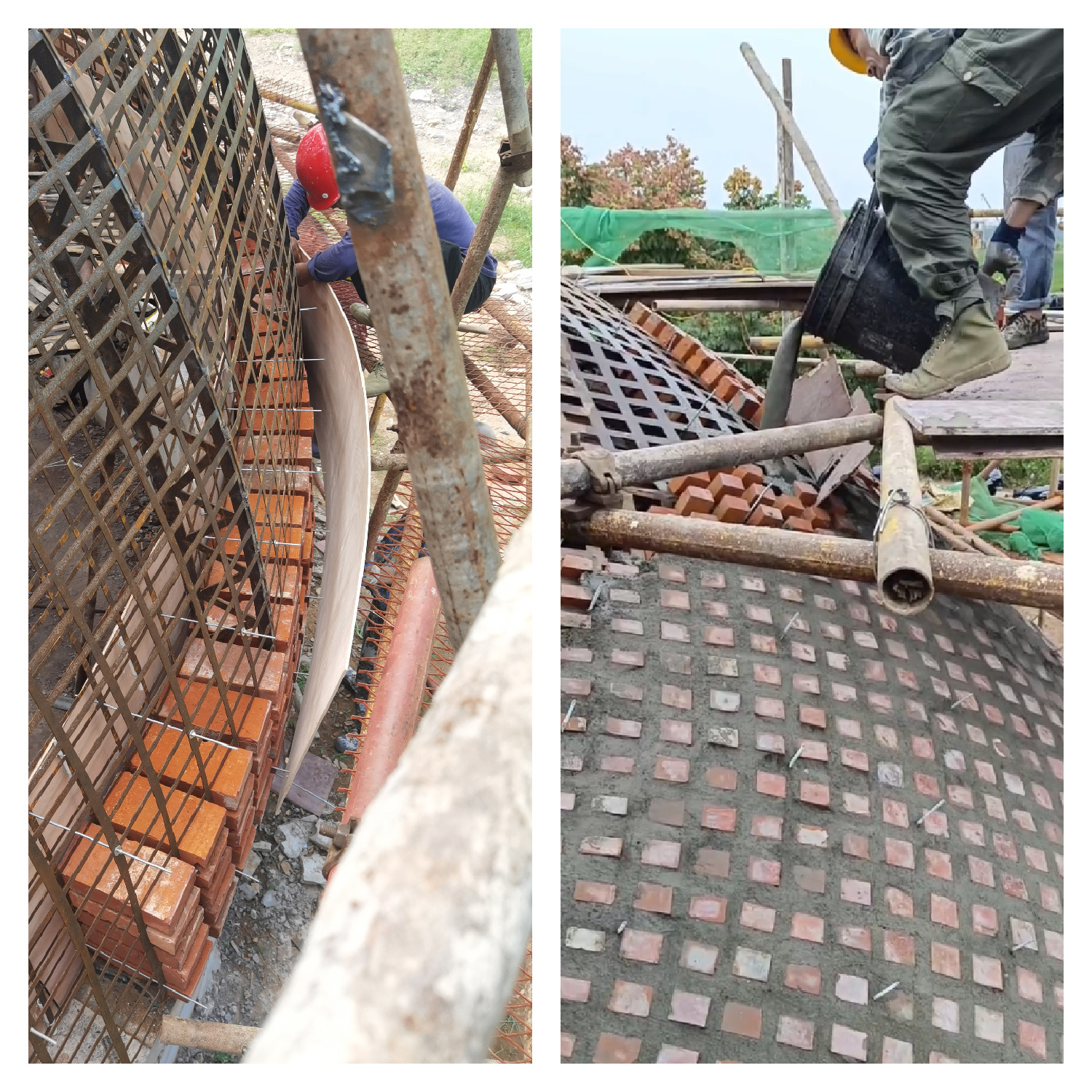

↑ inserting bricks

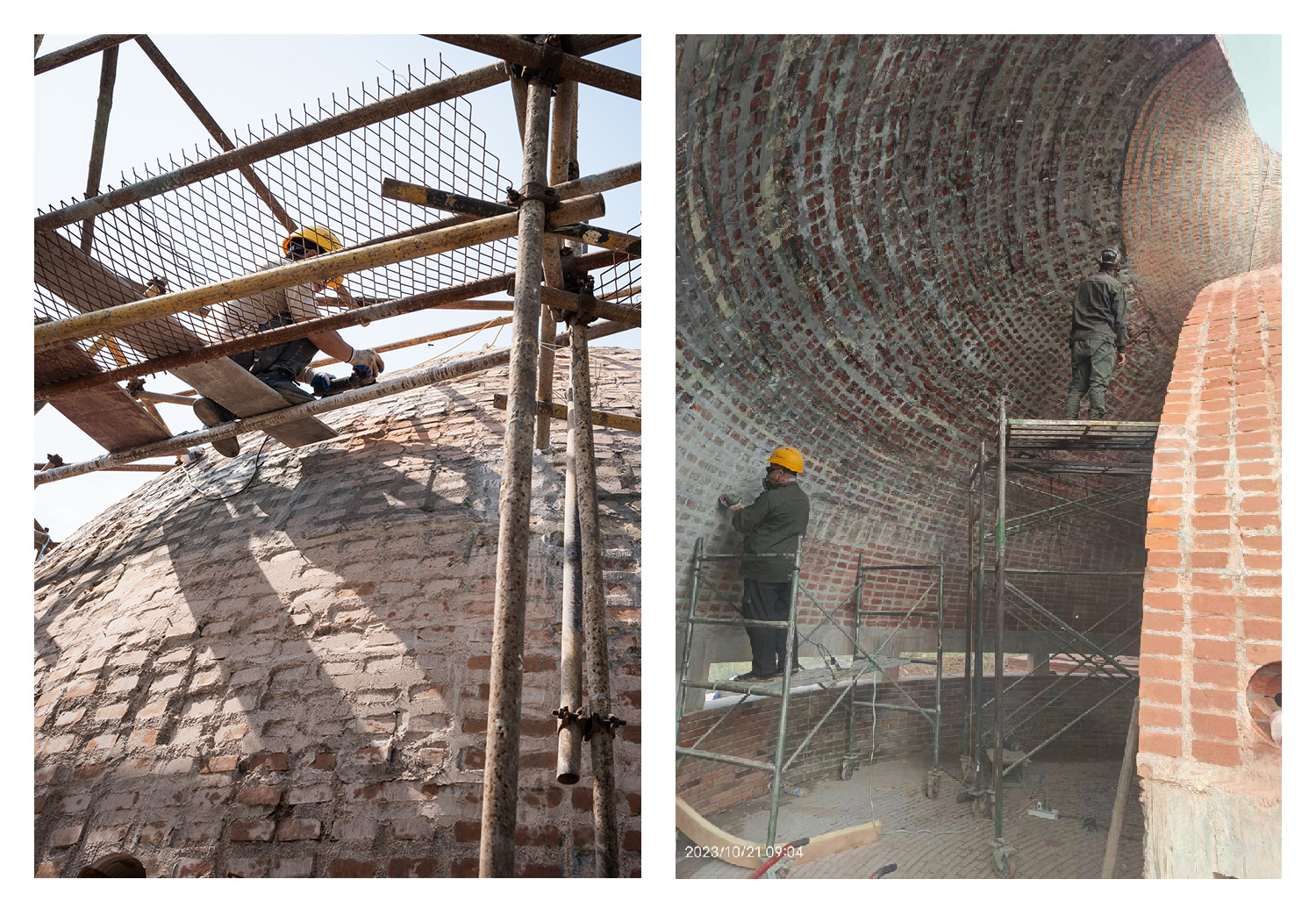

↑erecting formwork and casting high strength concrete
↑ polishing surface

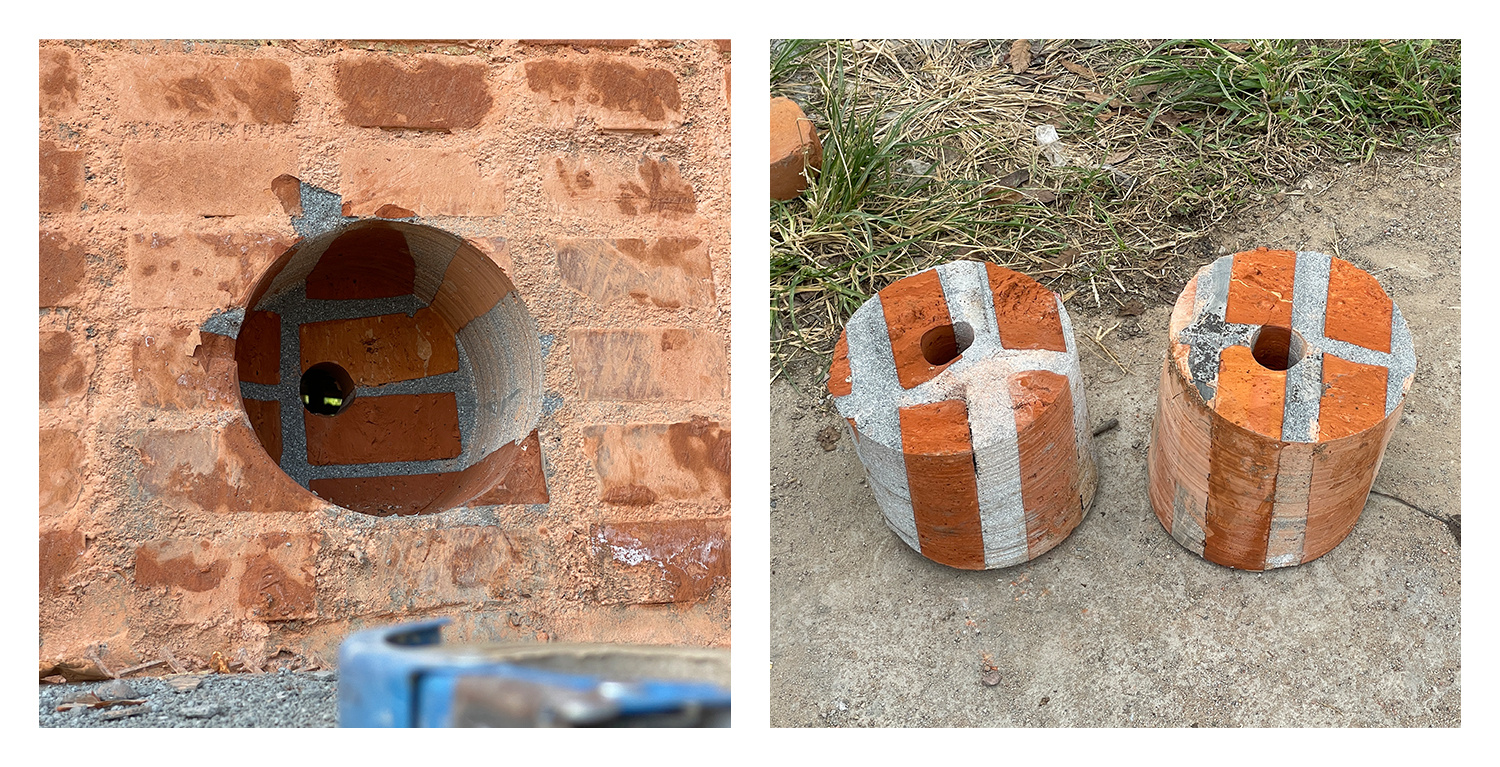

↑ cutting out 24 holes
